Description

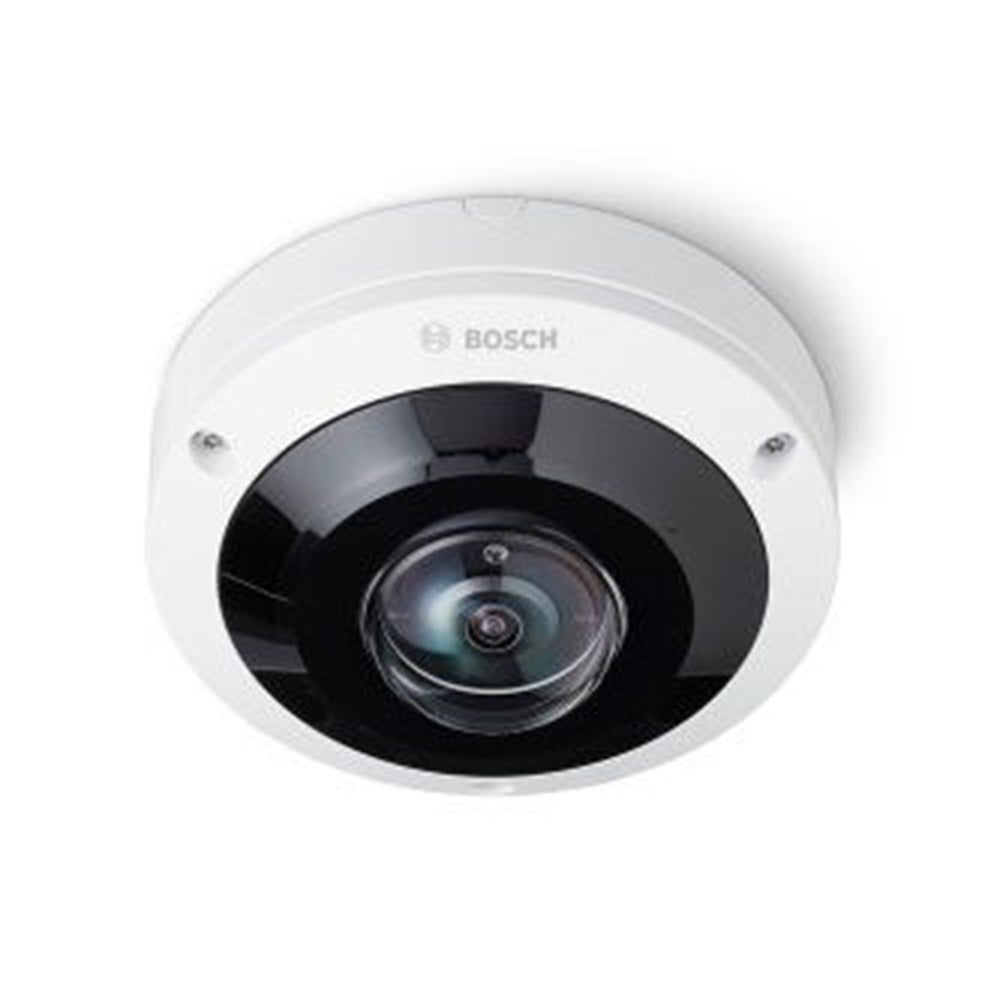

12MP 360DEGREE panoramic camea with stereographic lens, HDR, IVA, integrated microphone array for audio AI, HDMI, IR, IP66 and IK10
| Manufacturer | IQSight |
|---|---|
| Part Number | NDS-5704-F360LE |
| Product Type | Camera |
| Form Factor | Dome |
| Effective Camera Resolution | 12MP |
| Focal Length | 1.26mm |
| Field of View (Horizontal) | 182° |
| Night Vision Distance | 65.62' |
| Indoor/Outdoor | Indoor, Outdoor |
| Ingress Protection Rating | IP66 |
| Impact Protection Rating | IK10 |
| Input Voltage | 12V DC, 24V AC |
| Connectivity Technology | Wired |
| Mount Type | Surface Mount |
| Color | White |
| Weight | 92.00oz |
| Maximum Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
| Image Sensor Type | CMOS |
| Maximum Operating Temperature | 122°F |
| Minimum Operating Temperature | -40°F |
| Operating Humidity | 100% |
| Longest Shutter Speed | 1/25 s |
| Shortest Shutter Speed | 1/500 Second |
| Cloud Capabilities | Cloud Enabled, Cloud Managed |
| Product Line | FlexiDome |
| Product Series | 5100i |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Lens Included | Yes |
| Environmental Certification | China RoHS, EU RoHS, EU WEEE |
| Environmentally Friendly | Yes |
| Features | Built-in Microphone, Cross Line Detection, ePTZ, Noise Detection, Noise Reduction, Privacy Masking, Region of Interest, SD Card Local Storage, White Balance, Wide Dynamic Range |
| Package Contents | FLEXIDOME Panoramic 5100i IR 1 x Camera Base 1 x Camera dome cover 1 x TR20 Allen key for camera installation 1 x 8-pin Audio and I/O connector 1 x 2-pin power connector and more below |
| Remote Management | Yes |
| Durability | Dust Resistant, Impact Resistant, Rain Resistant, Scratch Resistant, UV Resistant, Vandal Resistant, Waterproof, Weather Resistant |
| Diameter | 83.0" |
| Model Number Replaces | NDS-7004-F180E, NDS-7004-F360E |
| Recording Formats | H.264, H.265 / HEVC |
| Storage Type | SD Card |
| Field of View | Horizontal, Vertical |
| Field of View (Vertical) | 182.0° |
| Maximum Aperture | f/2 |
| Maximum Frame Rate | 30fps |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Category | Physical Security > Video Surveillance > Surveillance Cameras |
| Shipping Weight | 2.3 lb |
| Country of Origin | TH |
Related Products
IQSight

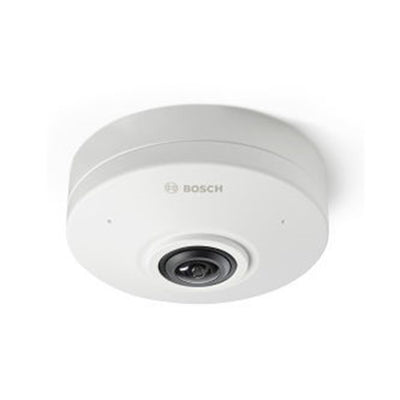

IQSight NDS-5704-F360 12MP 360 panoramic camea with stereographic lens, HDR, IVA, integrated microphone array for audio AI, HDMI
