Description

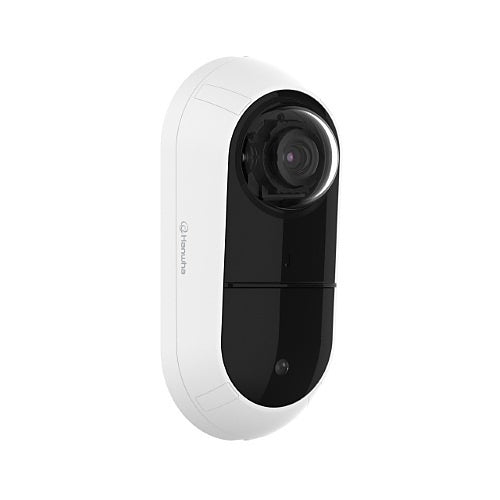

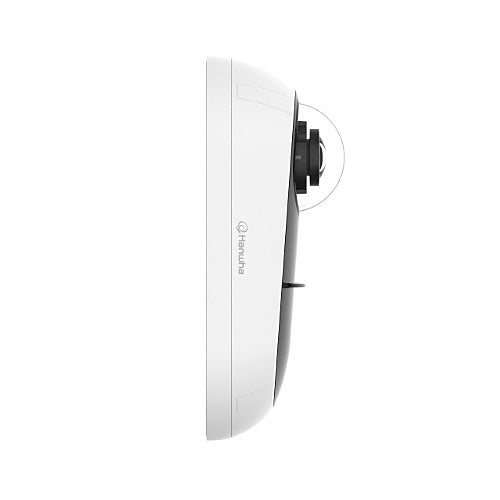

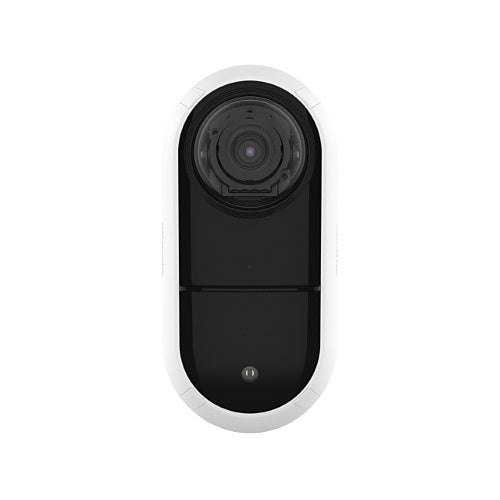

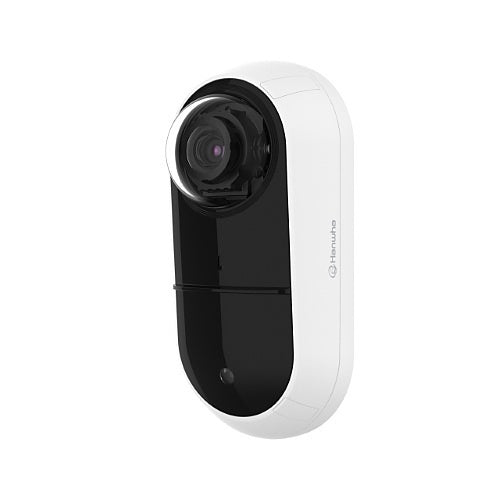

T Series, wall mount AI panoramic camera, 5MP @ 30 FPS, 1.6mm fixed focal lens (HFoV: 175 , VFoV: 125 ), Triple CODEC (H.265/H.264/MJPEG) with WiseStream III (based on AI engine) support, 120dB WDR, IR viewable length 15m (49ft),WiseMD based on AI engine, Classified object type: Person/Vehicle (vehicle type: car/bus/truck/motorcycle/bicycle); IVA events based on AI engine: Virtual line (Crossing/Direction), Virtual area [Loitering/Intrusion/Enter/Exit/(Dis), Appear], virtual area (intrusion/enter/exit), virtual Line (crossing/ direction), Business analytics: People Counting, Queue Management, Heatmap, Occupancy, Tamper detection, built-in mic, SD card, IP66, PoE, white color
| Manufacturer | Hanwha |
|---|---|
| Part Number | TNV-C8011RW |
| Product Type | Panoramic Camera |
| Effective Camera Resolution | 5MP |
| Maximum Video Resolution | 2592 x 1944 |
| Lens Type | Fixed |
| Focal Length | 1.6mm |
| Field of View (Horizontal) | 175° |
| Night Vision Distance | 49.21' |
| Ingress Protection Rating | IP66 |
| Impact Protection Rating | IK10 |
| Connectivity Technology | Wired |
| Mount Type | Wall Mount |
| TAA Compliant | Yes |
| Color | White |
| Height | 65.5" |
| Width | 31.5" |
| Depth | 22.4" |
| Limited Warranty | 5-Year |
| Maximum Resolution | 1280 x 720 |
| Maximum Focal Length | 1.6mm |
| Minimum Focal Length | 1.6mm |
| Wide Dynamic Range | Yes |
| Image Sensor Type | CMOS |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -22°F |
| Operating Humidity | 95% RH |
| Longest Shutter Speed | 1/5 s |
| Minimum Illumination | 0.00lux |
| Shortest Shutter Speed | 1/12000 Second |
| Product Series | T |
| Network (RJ-45) | Yes |
| Lens Included | Yes |
| Environmental Certification | CE, FCC, UL |
| Environmentally Friendly | Yes |
| Features | Back Light Compensation (BLC), Built-in HLC, Built-in IR LED, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Motion Detection, Privacy Masking, Wide Dynamic Range |
| Remote Management | Yes |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Storage Type | Memory Card |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Vertical) | 125.0° |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264, H.265, MJPEG |
| Category | Physical Security > Video Surveillance > Surveillance Cameras |
| Shipping Weight | 1.85 lb |
| Country of Origin | VN |

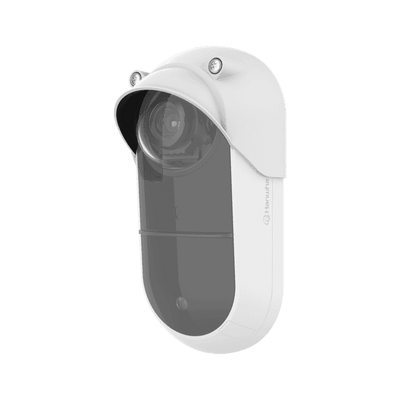

Compatible Accessories
