Description

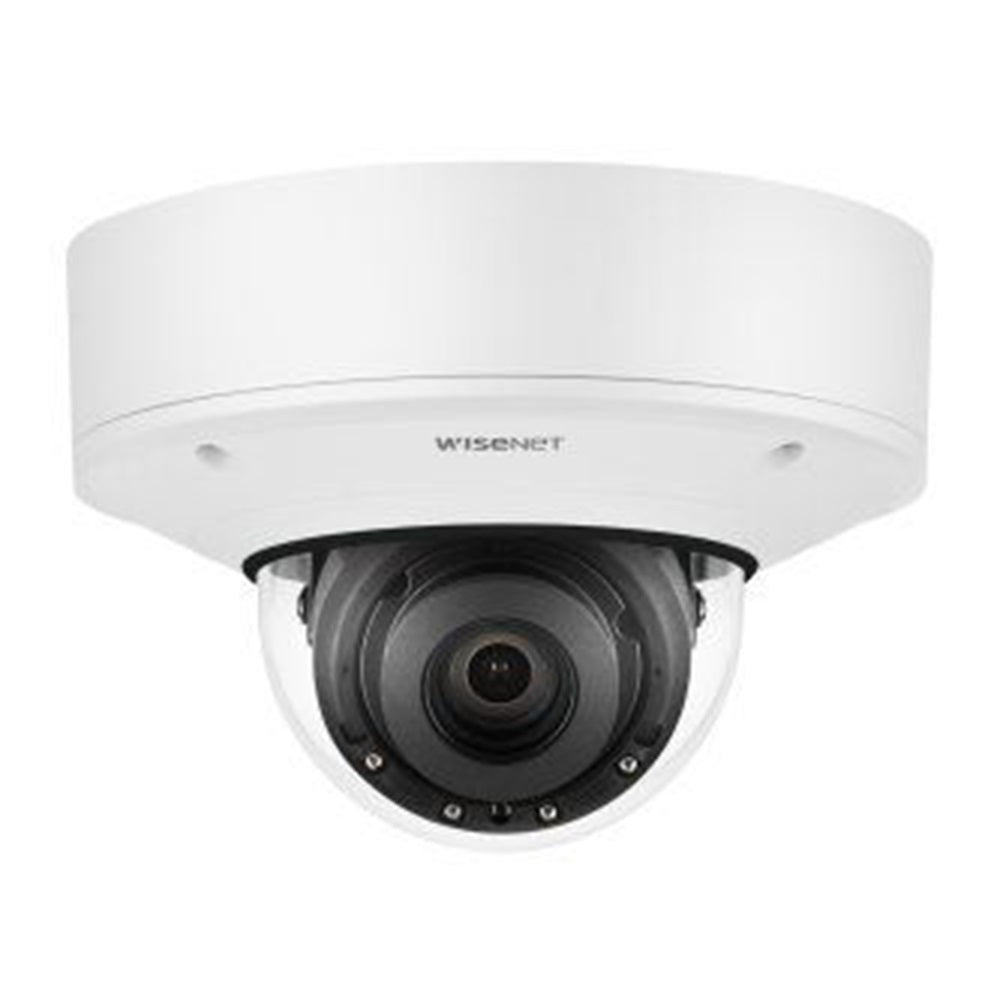

4K Network AI IR Vandal Dome Camera, Max. 4K resolution, 0.05Lux@F1.6 (Color), 0Lux (B/W, IR LED on), Day & Night(ICR), WDR(120dB) H.265, H.264, MJPEG codec, WiseStream, Video Analytics based on AI, Object detection and classification (Person, Face, Vehicle, License Plate), Attribute, BestShot, Compatible with Wisenet Retail Insight v2.0 for Business Intelligence, Age/gender-based people counting, Heatmap, Queue management, Modular structure for easy installation, POE+.
| Manufacturer | Hanwha |
|---|---|
| Part Number | PNV-A9081R |
| Product Type | Dome Camera |
| Form Factor | Dome |
| Effective Camera Resolution | 8MP |
| Maximum Video Resolution | 3840 x 2160 |
| Lens Type | Varifocal |
| Focal Length | 4.5-10mm |
| Night Vision Distance | 98.43' |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP66, IP67, IP6K9K |
| Impact Protection Rating | IK10 |
| Input Voltage | 12V DC |
| Connectivity Technology | Wired |
| Mount Type | Conduit Box Mount |
| NDAA Compliant | Yes |
| TAA Compliant | Yes |
| Color | White |
| Weight | 4.19lb |
| Limited Warranty | 3-Year |
| Maximum Resolution | 1280 x 720 |
| Maximum Focal Length | 10.0mm |
| Minimum Focal Length | 4.5mm |
| Wide Dynamic Range | Yes |
| Image Sensor Type | CMOS |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -40°F |
| Operating Humidity | 90% RH |
| Longest Shutter Speed | 1/5 s |
| Minimum Illumination | 0.01lux |
| Shortest Shutter Speed | 1/12,000 Second |
| Cloud Capabilities | Cloud Enabled, Cloud Managed |
| Product Series | P |
| Network (RJ-45) | Yes |
| Lens Included | Yes |
| Minimum Aperture | f/2.65 |
| Features | 0.05Lux at F1.6 (Color), 0 Lux (B/W IR LED On), 30fps at all resolutions (H.265/H.264), 30m (98ft) IR illumination, 4.5-10mm (2.2x) motorized varifocal lens, 4K/8 MP (3840 x 2160) resolution, Day and Night (ICR), WDR (120dB), P-Iris, Digital image stabilization with built-in Gyro sensor, H.265, H.264, MJPEG codec supported, Multiple streaming, Object detection and classification (Person, Face, Vehicle, License Plate), Attribute, BestShot, Video Analytics based on AI |
| Remote Management | Yes |
| Durability | Dustproof, Impact Resistant, Vandal Resistant, Waterproof |
| Diameter | 7.1" |
| Recording Formats | H.264, H.265 / HEVC |
| Storage Type | SD Card |
| Aspect Ratio | 16:9 |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Vertical) | 53.6° |
| Maximum Aperture | F1.6 |
| Maximum Frame Rate | 30fps |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Analog Video Signal Format | CVBS |
| Graphics Mode | 4K UHD |
| Category | Physical Security > Video Surveillance > Surveillance Cameras |
| Shipping Weight | 7.35 lb |
| Country of Origin | VN |
