Description

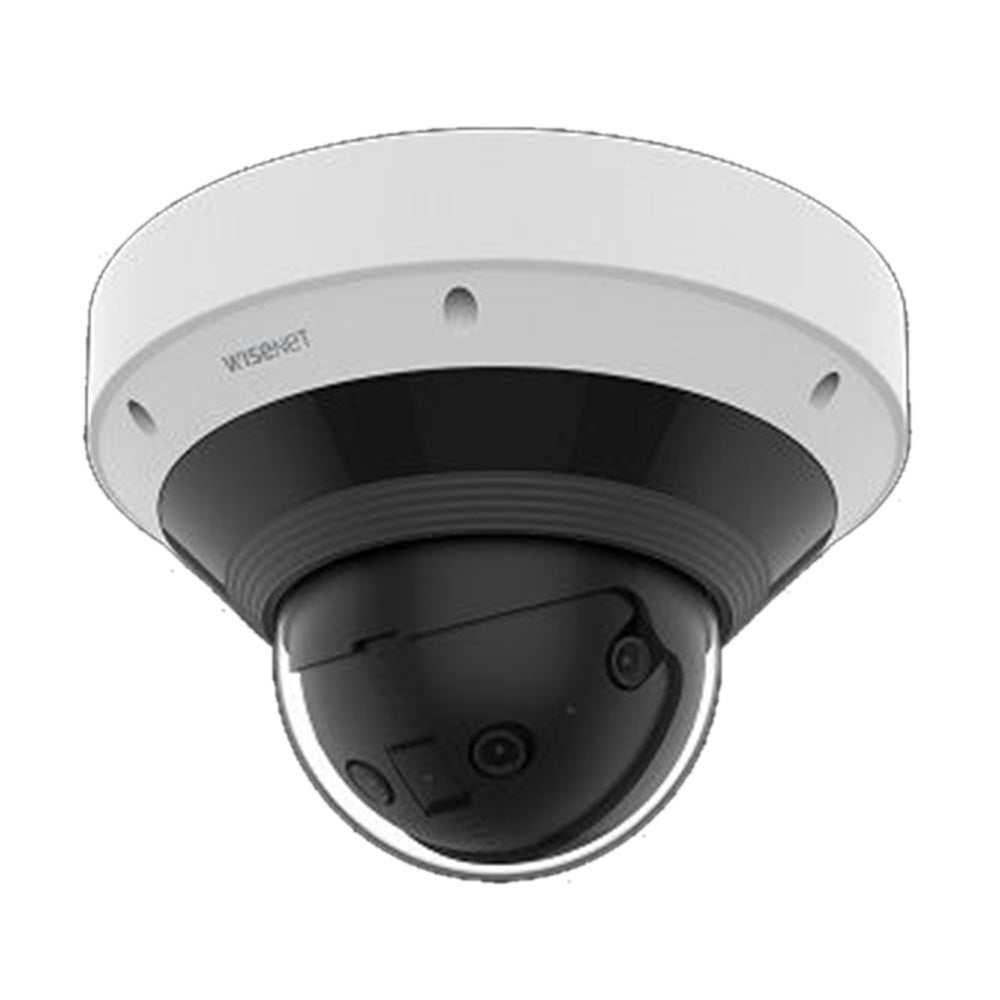

Panoramic Multi-sensor camera, FoV: H209 , V:60 , 8MP @ 20fps, Alpha Blending, triple codec H.265/H.264/MJPEG with WiseStream III technology, extreme WDR 120dB, Wise NR II, IR viewable length 65' (20m), Analytics events based on AI engine: Object detection (Person/Vehicle), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), defocus detection, Micro USB for easy installation, 2 x Micro SD cards (512GB each), PoE+/12VDC, IP66/IK10/NEMA4X, TPM 2.0 (FIPS 140-2 level 2)
| Manufacturer | Hanwha |
|---|---|
| Part Number | PNM-C9022RV |
| Product Type | Camera |
| Form Factor | Dome |
| Effective Camera Resolution | 8MP |
| Maximum Video Resolution | 5120 x 1568 |
| Lens Type | Fixed Focus |
| Focal Length | 2.8mm |
| Field of View (Horizontal) | 209° |
| Night Vision Distance | 65.62' |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP66 |
| Impact Protection Rating | IK10 |
| Input Voltage | 12V DC |
| Connectivity Technology | Wired |
| Mount Type | Pendant Mount |
| TAA Compliant | Yes |
| Color | White |
| Weight | 6.39lb |
| Maximum Focal Length | 2.8mm |
| Minimum Focal Length | 2.8mm |
| Wide Dynamic Range | Yes |
| Image Sensor Type | CMOS |
| Number of Sensors | 4 |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -40°F |
| Operating Humidity | 0-95% RH (Non-condensing) |
| Longest Shutter Speed | 2 s |
| Minimum Illumination | 0.01lux |
| Shortest Shutter Speed | 1/12,000 Second |
| Product Series | P |
| Network (RJ-45) | Yes |
| Lens Included | Yes |
| Features | WiseNR?(Based on AI engine) |
| Remote Management | Yes |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Diameter | 10.0" |
| Model Number Replaces | DS-2CD6924G0-IHS 2.8MM, PNM-9022V, PNM-9022V/KUS, PNM-9022V/KWF |
| Storage Type | Memory Card |
| Field of View | Horizontal, Vertical |
| Field of View (Vertical) | 60.0° |
| Maximum Aperture | f/2 |
| Maximum Frame Rate | 20fps |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 4x |
| Video Formats | H.264, H.265, MJPEG |
| Category | Physical Security > Video Surveillance > Surveillance Cameras |
| Shipping Weight | 8.16 lb |
| Country of Origin | KR |
