Description

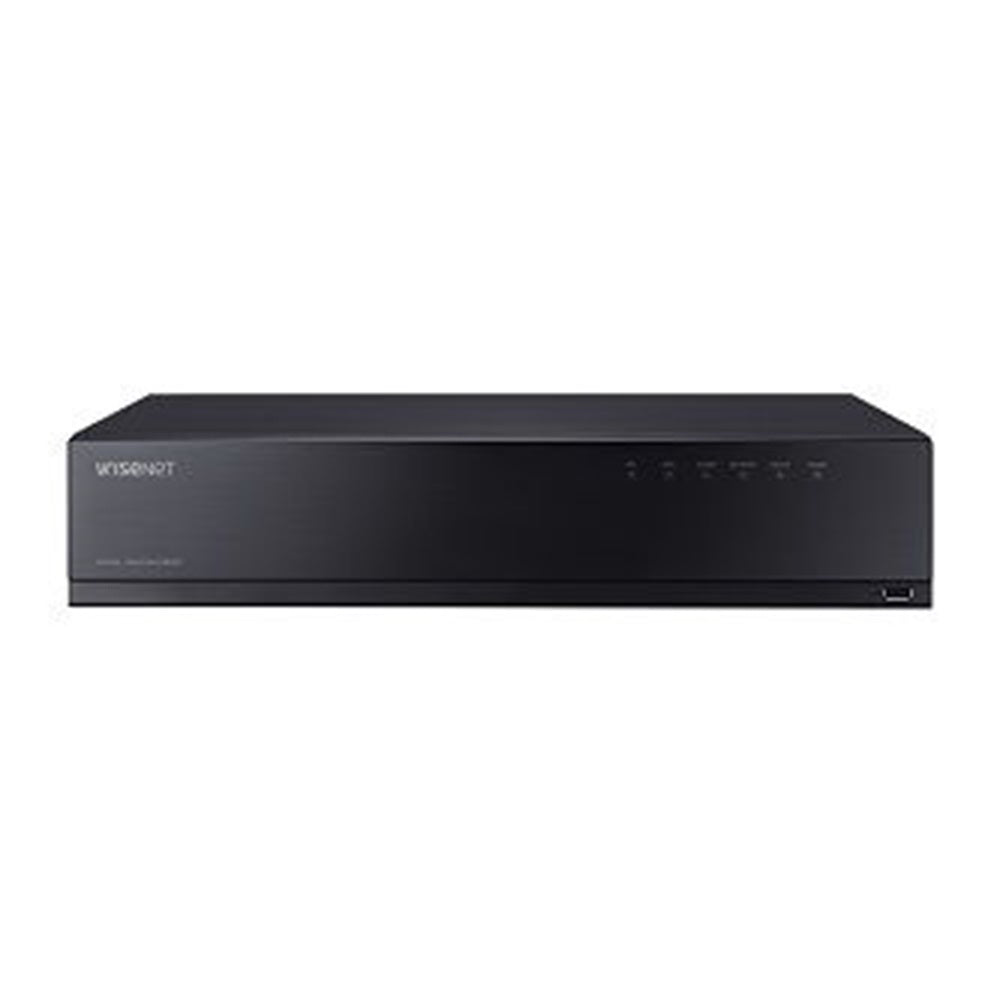

5-in-1 16CH Pentabrid DVR- 8TB Raw Storage, AHD, HDTVI, HDCVI (up to 8MP), Total 18CH(Analog Maximum 16CH and 2 Network Maximum 18CH), Analog Camera up 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH and Network camera 2MP (480fps). Codec H.265/H.264/MJPEG, Recording Bandwidth Max. 128Mbps, Playback Bandwidth 32Mbps. 4CH audio input/ 1CH audio output, 16 alarm input and 4 relay output, coaxial control, HDMI/VGA video output, 1 X spot monitor output, QR code, Up to 8 SATA HDDs (6TB/HDD). NDAA & FCC Compliant Model.
| Manufacturer | Hanwha |
|---|---|
| Part Number | HRX-1635-8TB |
| Product Type | Video Surveillance Station |
| Number of Channels | 16 |
| Storage Capacity | 8TB |
| Connectivity Technology | Wired |
| Height | 3.50" |
| Width | 17.30" |
| Depth | 15.10" |
| Limited Warranty | 3-Year |
| Maximum Resolution | 3264 x 2448 |
| Hard Drive Capacity | 8TB |
| Bandwidth | 100Mbps |
| Composite Video In | Yes |
| Composite Video Out | Yes |
| HDMI | Yes |
| Number of VGA Outputs | 1 |
| Ethernet | Yes |
| Remote Management | Yes |
| Model Number Replaces | HRX-1620-8TB, HRX-1632-6TB, HRX-1632-8TB |
| Recording Formats | 4K |
| Maximum Frame Rate | 30fps |
| Power Consumption | 200W |
| Video Formats | H.264, H.265, MJPEG |
| Video Signal Format | NTSC, PAL |
| Category | Physical Security > Video Surveillance > Video Recorders & Servers |
| Shipping Weight | 17.9 lb |
| Country of Origin | VN |
Related Products
Hanwha
Hanwha HRX-1634-8TB 5-in-1 16CH Pentabrid DVR- 8TB Raw Storage, AHD, HDTVI, HDCVI (up to 8MP), Total 18CH(Analog Maximum 16CH and
$3,084.54$3,120.00
In stock (10 units)
Hanwha
Hanwha HRX-1635-12TB 5-in-1 16CH Pentabrid DVR- 12TB Raw Storage, AHD, HDTVI, HDCVI (up to 8MP), Total 18CH(Analog Maximum 16CH
$4,359.89$4,410.00
In stock (3 units)
Hanwha
Hanwha HRX-1635-4TB 5-in-1 16CH Pentabrid DVR- 4TB Raw Storage, AHD, HDTVI, HDCVI (up to 8MP), Total 18CH(Analog Maximum 16CH and
$2,778.07$2,810.00
In stock (3 units)
Hanwha
Hanwha HRX-1634-4TB 5-in-1 16CH Pentabrid DVR- 4TB Raw Storage, AHD, HDTVI, HDCVI (up to 8MP), Total 18CH(Analog Maximum 16CH and
$2,293.63$2,320.00
In stock (4 units)
Hanwha
Hanwha HRX-1635 5-in-1 16CH Pentabrid DVR, AHD, HDTVI, HDCVI (up to 8MP), Total 18CH(Analog Maximum 16CH and 2 Network
$1,987.15$2,010.00
In stock (2 units)
Hanwha

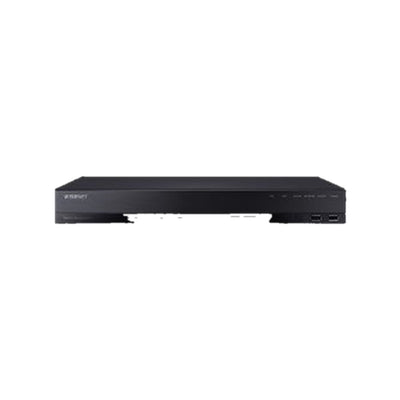

Hanwha HRX-1634 5-in-1 16CH Pentabrid DVR, AHD, HDTVI, HDCVI (up to 8MP), Total 18CH(Analog Maximum 16CH and 2 Network
$1,502.73$1,520.00
In stock (3 units)
Hanwha

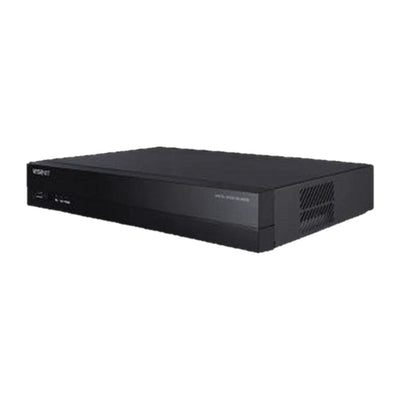

Hanwha HRX-434-2TB Wisenet HD+ Pentabrid DVR AHD (up to 8MP), - 2TB Raw Storage.TVI (up to 8MP), CVI (up to 5MP), CVBS and IP
$807.72$817.00
In stock (9 units)
Hanwha

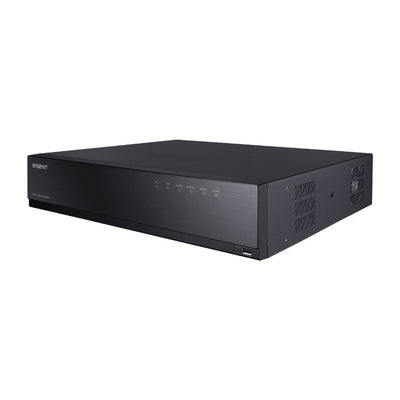

Hanwha HRX-835A-6TB Wisenet HD+ Pentabrid DVR AHD (up to 8MP), - 6TB Raw Storage.TVI (up to 8MP), CVI (up to 5MP), CVBS and IP
