Description

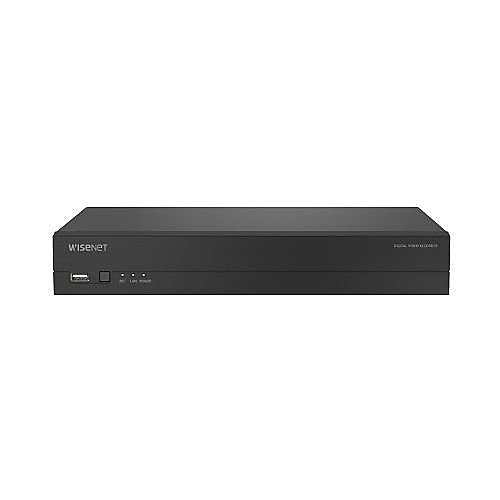

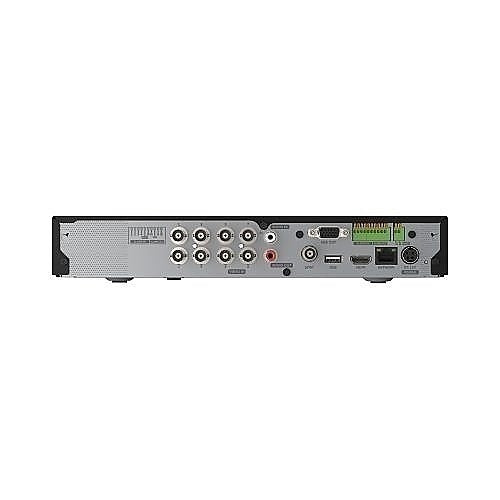

A-Series 8CH DVR, AHD / TVI / CVI up to 5MP Half, CVBS (NTSC/Pal), Max. Analog 8CH + NW 2CH(2MP), 12/12fps@5MP(Half), 15/12fps@4MP(Half), 15/12fps@2MP recording, H.265/H.264/MJPEG, Recording Bandwidth Max. 40Mbps. 1CH audio input/ 1CH audio output, 4 alarm input and 1 relay output, coaxial control, HDMI/VGA video output, 1 x spot monitor output, QR code, up to one 6TB SATA HDD (Max. 6TB).
| Manufacturer | Hanwha |
|---|---|
| Part Number | ARD-810 |
| Product Type | IP Recorder |
| Input Voltage | 12V DC |
| Number of Channels | 8 |
| Storage Capacity | 6TB |
| Color | Black |
| Height | 1.9" |
| Width | 11.9" |
| Depth | 8.2" |
| Weight | 2.40lb |
| Limited Warranty | 5-Year |
| Hard Drive Capacity | 6TB |
| HDMI | Yes |
| Number of USB Ports | 2 |
| VGA | Yes |
| Environmental Certification | CE |
| Operating System Compatibility | macOS, Windows |
| Ethernet | Yes |
| Maximum Power Consumption | 20W |
| Maximum Frame Rate | 120fps |
| Video Formats | H.264, H.265, MJPEG |
| Video Signal Format | NTSC, PAL |
| Category | Physical Security > Video Surveillance > Video Recorders & Servers |
| Shipping Weight | 2.4 lb |
| Country of Origin | VN |
Related Products
Hanwha

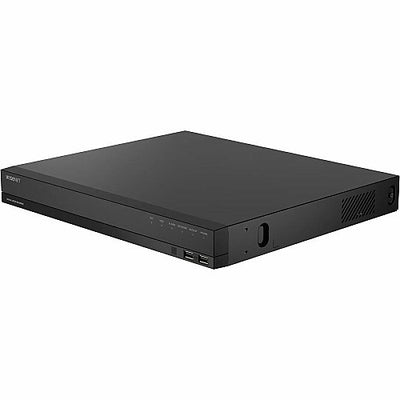

Hanwha ARD-1610 A-Series 16CH DVR, AHD / TVI / CVI up to 5MP (Half), CVBS (NTSC/Pal), Max. Analog 16CH + NW 2CH(2MP)
