Description

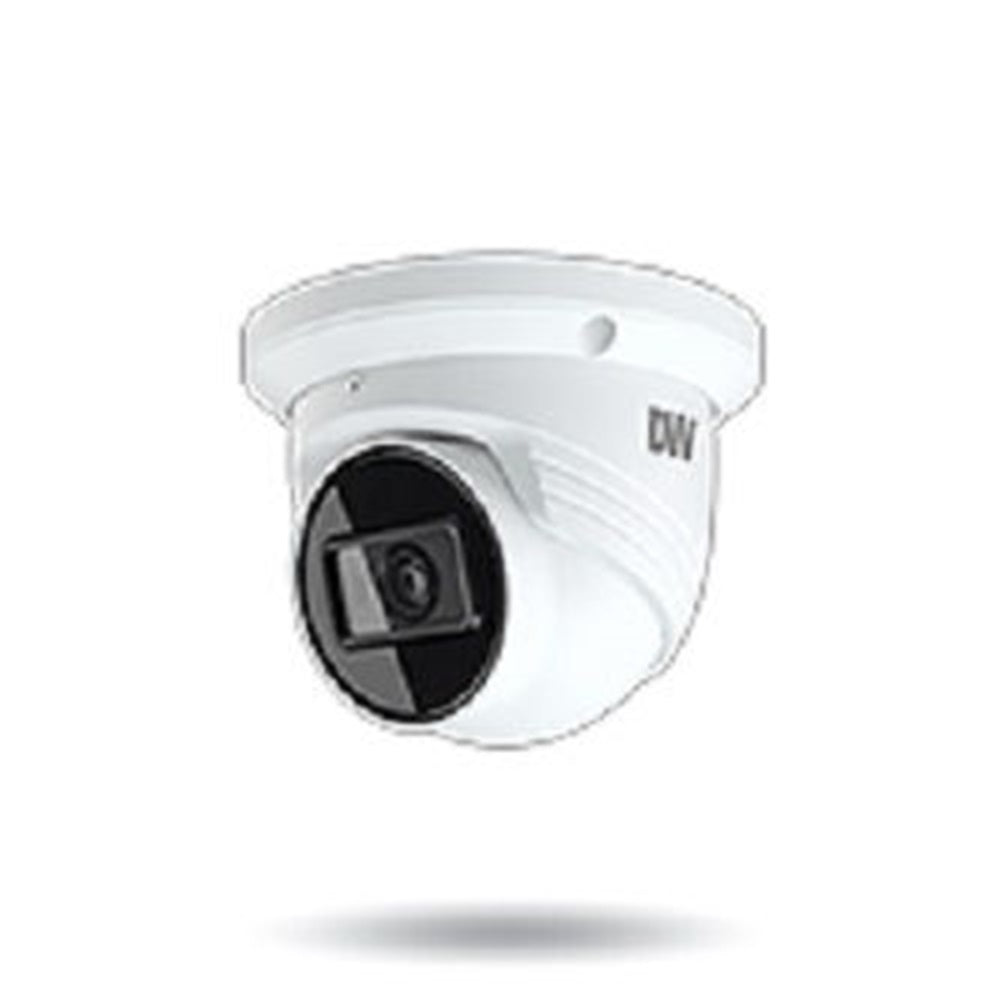

MEGApix V-Class Turret, 4 Megapixel, 2.8mm Fixed Lens, True D&N, T-WDR, 164ft Smart IR, Multiple Codecs (H.265, H.264, MJPEG ) with simultaneous Dual Stream, Video Analytics (Line Crossing, Perimeter Intrusion, Video Tampering), Smart DNR, Audio Input and built in microphone, Programmable Privacy Zones, Web Server Built in, PoE and DC12V, IP67, IK10, OnVIF Compliant, NDAA Compliant 5 Year Warranty. NOTE: Does not qualify for free license redemption.
| Manufacturer | Digital Watchdog |
|---|---|
| Part Number | DWC-VSTB04BI |
| Product Type | Network Camera |
| Form Factor | Turret |
| Effective Camera Resolution | 4MP |
| Maximum Video Resolution | 1920 x 1080 |
| Lens Type | Fixed |
| Focal Length | 2.8mm |
| Night Vision Distance | 100.00' |
| Ingress Protection Rating | IP67 |
| Impact Protection Rating | IK10 |
| Input Voltage | 12V DC |
| Output Voltage | 12V DC |
| Connectivity Technology | Wired |
| Mount Type | Ceiling Mount, Junction Box Mount, Wall Mount |
| NDAA Compliant | Yes |
| Weight | 1.01lb |
| Limited Warranty | 5-Year |
| Maximum Resolution | 1280 x 720 |
| Maximum Focal Length | 2.8mm |
| Minimum Focal Length | 2.8mm |
| Wide Dynamic Range | Yes |
| Audio Encoding | G.711 |
| Memory Card Slot | Yes |
| Image Sensor Type | CMOS |
| Certifications | CE, FCC, NDAA, ONVIF |
| Image Sensor Size | 1/3" |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Temperature | -22°F |
| Operating Humidity | 0-95% RH (Non-condensing) |
| Operating Temperature (T-T) | -22-140°F |
| Longest Shutter Speed | 1/2 s |
| Minimum Illumination | 0.00lux |
| Shortest Shutter Speed | 1/100000 Second |
| Product Line | MEGApix |
| Product Series | V-Class |
| Supported Network Protocols | IPv4, IPv6 |
| Network (RJ-45) | Yes |
| Focus Modes | Auto Focus, Manual Focus |
| Lens Included | Yes |
| Network Technology | 100Base, 10Base-T |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Defog, Dual Stream, Dynamic Noise Reduction, Privacy Masking, Video Content Analytics, Wide Dynamic Range |
| Remote Management | Yes |
| Durability | Dustproof, Impact Resistant, Waterproof, Weather Resistant |
| Material | Aluminum Die-cast |
| Recording Formats | H.264 |
| Storage Type | SD Card |
| Aspect Ratio | 16:9 |
| Built-in Microphone | Yes |
| Field of View | Horizontal, Vertical |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Motion Detection | Yes |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Programmable | Yes |
| Protocols | RTP |
| Video Formats | H.264 / AVC, MJPEG |
| Category | Physical Security > Video Surveillance > Surveillance Cameras |
| Shipping Weight | 1.4 lb |
| Country of Origin | US |
Related Products
Digital Watchdog

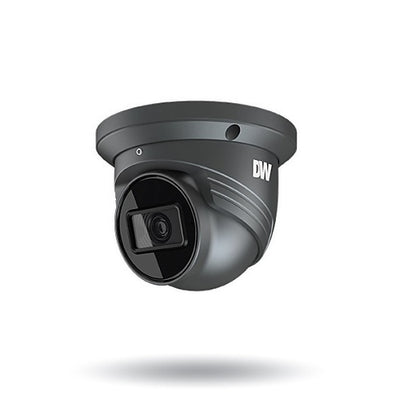

Digital Watchdog DWC-VSTB04BIB MEGApix V-Class Turret, 4 Megapixel, 2.8mm Fixed Lens, True D&N, T-WDR, 164ft Smart IR, Multiple Codecs
$202.84$238.00
In stock (1 units)
Digital Watchdog

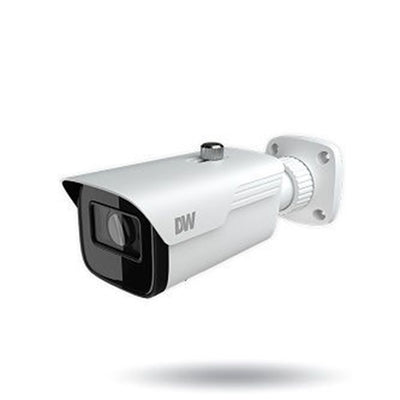

Digital Watchdog DWC-VSBD04BI MEGApix V-Class Weather Resistant Bullet, 4 Megapixel, 2.8mm Fixed Lens, True D&N, T-WDR, 164ft Smart IR
$220.74$259.00
In stock (13 units)
Digital Watchdog
Digital Watchdog DWC-MV95WI36TW MEGApix Indoor/Outdoor Vandal Dome Camera, 5 Megapixel , 3.6mm Fixed Lens, True D&N, T-WDR, 100ft Smart IR
$443.17$520.00
In stock (5 units)
Digital Watchdog
Digital Watchdog DWC-MPH2W28TW MEGApix IVA Pinhole Camera, 2.1 Megapixel @ 30fps, 2.8mm Fixed Lens, T-WDR, Color Image, Triple Codecs(H.265
$852.27$1,000.00
In stock (1 units)
Digital Watchdog

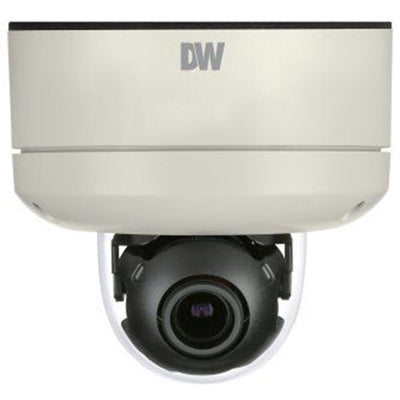

Digital Watchdog DWC-V4283WD Varifocal Autofocus Lens, True Wide Dynamic Range (100dB), True Day/Night with IR Cut Filter, Smart 3D-DNR
$410.79$482.00
In stock (5 units)
Digital Watchdog

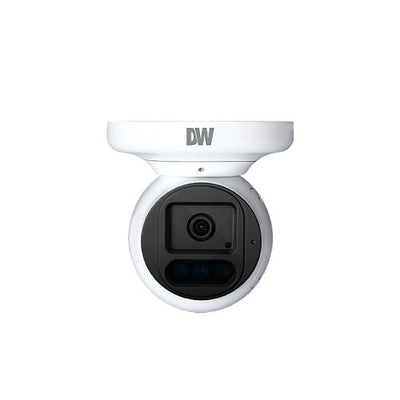

Digital Watchdog DWC-XSTD05BI MEGApix Ai Indoor/Outdoor Vandal Turret Camera, Ai Deep Learning, Star-Light Plus, 5 Megapixel 1/2.8" Image
$1,132.66$1,329.00
In stock (3 units)
Digital Watchdog

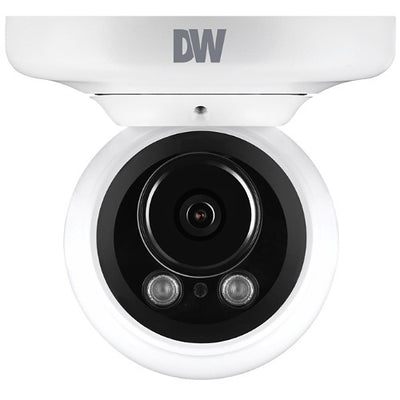

Digital Watchdog DWC-MVA5WI28TX MEGApix IVA Indoor/Outdoor Vandal Turret Camera, Star-Light Plus, 5 Megapixel 1/2.8 Image Sensor (1920x1080 @
