Description

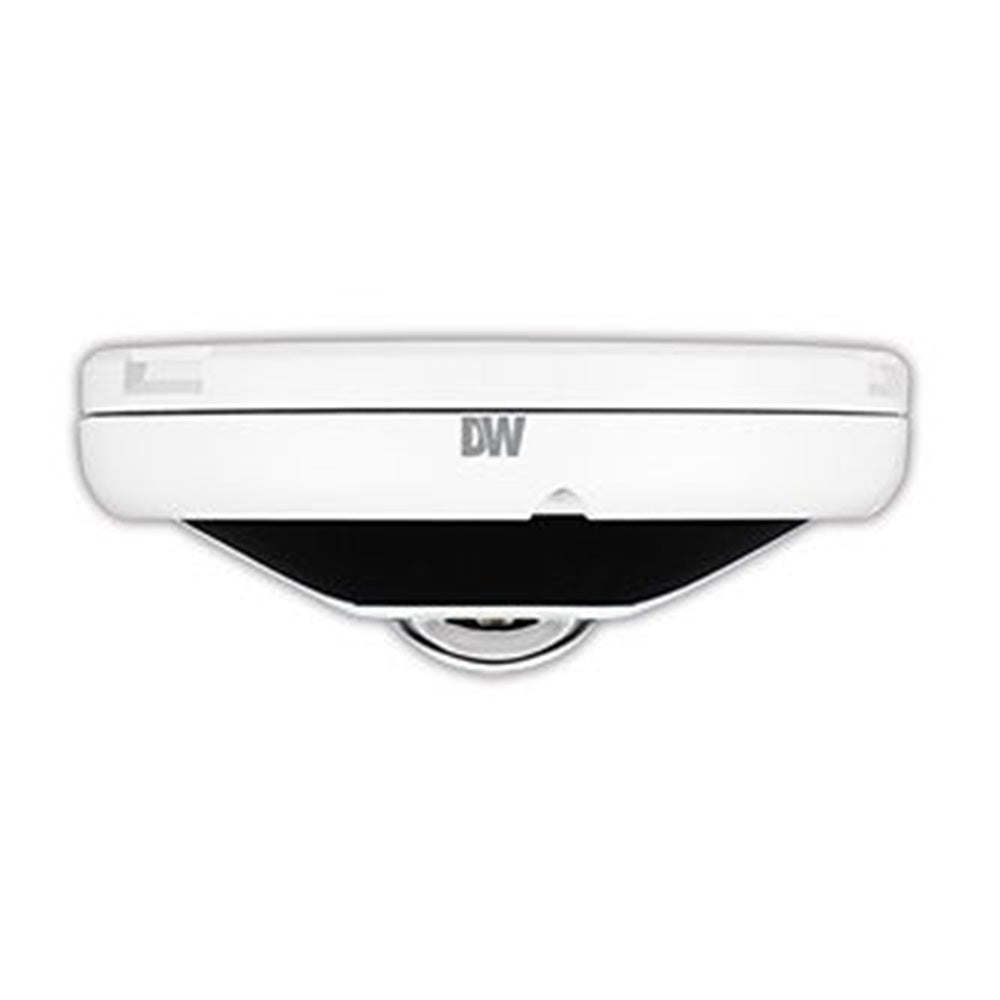

MEGApix Fisheye Indoor/Outdoor Vandal Dome, Star-Light Plus, 5 Megapixel, 360 and 180-degree Panoramic view with Edge to Edge Clarity, 1/1.8 Image Sensor, 30fps @ 2592x1944, 1.5mm lens, Multi Codecs (H.265, H.264, MJPEG) with Simultaneous Dual Streams, 80ft Smart IR, T-WDR with Mechanical IR Cut Filter, TDN, Two Way Audio, Smart DNR 3D Digital Noise Reduction, Auto Gain Control (AGC), Auto White Balance (AWB), Motion Detection, Micro SD/SDHC Class 10 Card Slot (card not included), Web Server Bullet In, Onvif Profile S, IP66, IK9, POE + DC12V, 5 Year Warranty.
| Manufacturer | Digital Watchdog |
|---|---|
| Part Number | DWC-PVF5DI1TW |
| Product Type | Network Camera |
| Form Factor | FishEye |
| Effective Camera Resolution | 5MP |
| Maximum Video Resolution | 2592 x 1944 |
| Lens Type | Fixed |
| Focal Length | 1.55mm |
| Night Vision Distance | 80.00' |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP66 |
| Impact Protection Rating | IK09 |
| Input Voltage | 12V DC |
| Output Voltage | 12V DC |
| Connectivity Technology | Wired |
| Mount Type | Ceiling Mount, Corner Mount, Gang Box Mount, Junction Box Mount, Pole Mount, Wall Mount |
| NDAA Compliant | Yes |
| TAA Compliant | Yes |
| Color | White |
| Height | 6.3" |
| Width | 2.8" |
| Limited Warranty | 5-Year |
| Maximum Resolution | 1280 x 720 |
| Audio Encoding | G.711 |
| Memory Card Slot | Yes |
| Image Sensor Type | CMOS |
| Certifications | CE, FCC, NDAA, UL Listing |
| Image Sensor Size | 1/1.8" |
| Maximum Operating Temperature | 122°F |
| Minimum Operating Temperature | -4°F |
| Operating Humidity | 10-90% (Non-condensing) |
| Operating Temperature (T-T) | -4-122°F |
| Longest Shutter Speed | 1/15 s |
| Minimum Illumination | 0.00lux |
| Shortest Shutter Speed | Off, x10, x2, x3, x5, x6, x7.5 |
| Product Line | MEGApix |
| Product Series | PVF |
| Supported Network Protocols | IPv4 |
| Network (RJ-45) | Yes |
| Focus Modes | Auto Focus, Manual Focus |
| Lens Included | Yes |
| Network Technology | 100Base-T, 10Base-T |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | 3D Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Dual Stream, Motion Detection, SD Card Local Storage |
| Remote Management | Yes |
| Durability | Weather Resistant |
| Material | Aluminum Die-cast |
| Model Number Replaces | DS-2CD6365G1-IVS, DWC-PF5M1TIR, DWC-PVF5M1TIR |
| Storage Type | SD Card |
| American Wire Gauge | 18AWG |
| Amperage | 625.0mA |
| Built-in Microphone | Yes |
| Field of View | Horizontal, Vertical |
| Maximum Aperture | f/2.5 |
| Maximum Frame Rate | 30fps |
| Motion Detection | Yes |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Programmable | Yes |
| Protocols | DNS |
| Video Formats | H.264 / AVC, H.265 / HEVC |
| Category | Physical Security > Video Surveillance > Surveillance Cameras |
| Shipping Weight | 1.55 lb |
| Country of Origin | US |
Related Products
Digital Watchdog
Digital Watchdog DWC-PVF9DI2TW MEGApix Fisheye Indoor/Outdoor Vandal Dome, Star-Light Plus, 9 Megapixel, 360 and 180-degree Panoramic view
$1,225.57$1,438.00
In stock (4 units)
Digital Watchdog
Digital Watchdog DWC-MV75WI28TW MEGApix Indoor/Outdoor Vandal Dome Camera, Star-Light Plus, 5 Megapixel, Star-Light Plus, 2592x1944 30fps
$569.33$668.00
In stock (12 units)
Digital Watchdog
Digital Watchdog DWC-MV75WI4TW MEGApix Indoor/Outdoor Vandal Dome Camera, Star-Light Plus, 5 Megapixel, Star-Light Plus, 2592x1944 30fps
$569.33$668.00
In stock (1 units)
Digital Watchdog

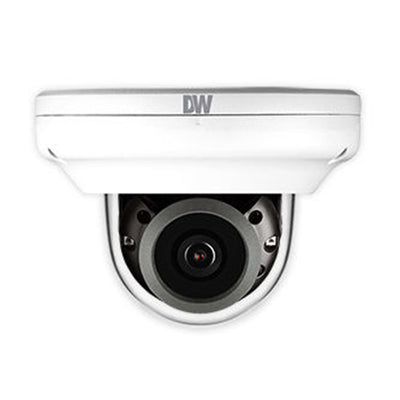

Digital Watchdog DWC-MVC8WI28TW MEGApix Indoor/Outdoor Vandal Dome Camera, Star-Light Plus, 4K , Star-Light Plus, 2952x2320 @ 30fps, 2.8MM
$842.04$988.00
In stock (4 units)
Digital Watchdog
Digital Watchdog DWC-XSTD05BI MEGApix Ai Indoor/Outdoor Vandal Turret Camera, Ai Deep Learning, Star-Light Plus, 5 Megapixel 1/2.8" Image
$1,132.66$1,329.00
In stock (3 units)
Digital Watchdog
Digital Watchdog DWC-MVA5WI28TX MEGApix IVA Indoor/Outdoor Vandal Turret Camera, Star-Light Plus, 5 Megapixel 1/2.8 Image Sensor (1920x1080 @
$614.49$721.00
In stock (3 units)
Digital Watchdog

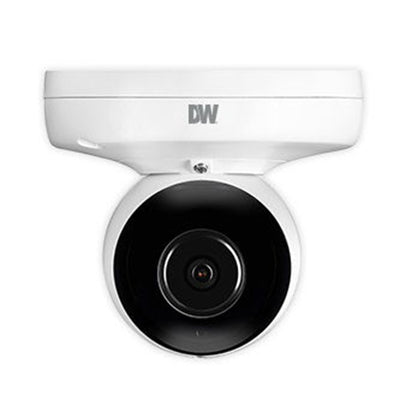

Digital Watchdog DWC-MVD8WIATW MEGApix IVA Indoor/Outdoor Vandal Ball Camera, Star-Light Plus, 4K , Star-Light Plus, 2952x2320 @ 30fps
