Description

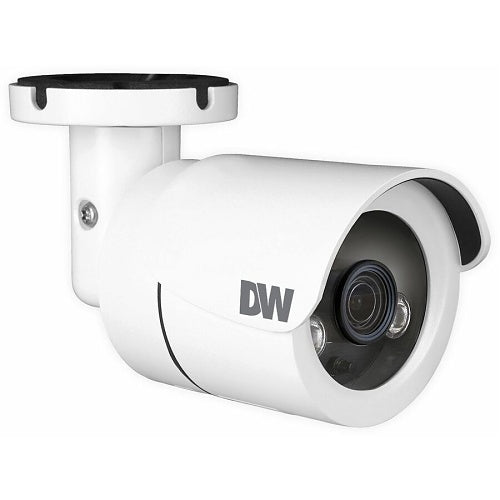

Star-Light Plus Universal HD Series, Weatherproof Bullet, 5MP@20fps/4MP@30fps, HD-Analog, HD-TVI, HD-CVI and all Legacy Resolutions, 4mm Lens, T-WDR, 70ft IR, TDN with IR Cut Filter, Smart 3D-DNR, OSD Control Via Coax, De-Fog, 12VDC, IP66, 5 Year Warranty
| Manufacturer | Digital Watchdog |
|---|---|
| Part Number | DWC-B7553WTIRW |
| Product Type | Surveillance Camera |
| Form Factor | Bullet |
| Effective Camera Resolution | 5MP |
| Maximum Video Resolution | 2592 x 1944 |
| Lens Type | Fixed |
| Focal Length | 4.0mm |
| Night Vision Distance | 70.00' |
| Ingress Protection Rating | IP66 |
| Input Voltage | 12V DC |
| Output Voltage | 12V DC |
| Connectivity Technology | Wired |
| Frequency | 60Hz |
| Color | White |
| Height | 6.4" |
| Limited Warranty | 5-Year |
| Maximum Resolution | 1280 x 720 |
| Maximum Focal Length | 4.0mm |
| Minimum Focal Length | 4.0mm |
| Wide Dynamic Range | Yes |
| Image Sensor Type | CMOS |
| Certifications | CE, FCC, NDAA |
| Image Sensor Size | 1/2.8" |
| Maximum Operating Temperature | 122°F |
| Minimum Operating Temperature | -4°F |
| Operating Humidity | 10-90% (Non-condensing) |
| Operating Temperature (T-T) | -4-122°F |
| Longest Shutter Speed | 1/30 s |
| Minimum Illumination | 0.00lux |
| Shortest Shutter Speed | 1/30000 Second |
| Product Line | Star-Light Plus |
| Focus Modes | Auto Focus |
| Lens Included | Yes |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | 3D Digital Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Joystick, Built-in OSD Function, Day/Night, Defog, Mirror, Privacy Masking, Wide Dynamic Range |
| Durability | Dust Resistant, Waterproof, Weather Resistant |
| Material | Aluminum Die-cast |
| Model Number Replaces | DWC-B7553WTIR, DWC-B7753TIR |
| American Wire Gauge | 18AWG |
| Amperage | 333.0mA |
| Field of View | Horizontal, Vertical |
| Maximum Frame Rate | 30fps |
| Motion Detection | Yes |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Programmable | Yes |
| Video Formats | H.264 / AVC, MJPEG |
| Analog Video Signal Format | CVBS, HDCVI |
| Category | Physical Security > Video Surveillance > Surveillance Cameras |
| Product Family | Digital Watchdog Bullet Cameras |
| Shipping Weight | 1.1 lb |
| Country of Origin | US |
Related Products
Digital Watchdog
Digital Watchdog DWC-V6563WTIR Star-Light Plus Universal HD Series, Vandal Dome, 5MP@20fps/4MP@30fps, HD-Analog, HD-TVI, HD-CVI and all
$369.88$434.00
In stock (3 units)
Digital Watchdog
Digital Watchdog DWC-V6863WTIRW Star-Light Plus Universal HD Series, Vandal Dome, 4K@15fps/4MP or 2.1MP@30fps, HD-Analog, HD-TVI, HD-CVI and
$514.77$604.00
In stock (1 units)
Digital Watchdog
Digital Watchdog DWC-D3263WTIR Star-Light Universal HD Series, Indoor Dome, 2.1MP CMOS Sensor, P-Iris, 1920x1080 resolution, AHD,CVI,TVI
$322.16$378.00
In stock (4 units)
Digital Watchdog
Digital Watchdog DWC-MB72WI4T MEGApix Weather Resistant Bullet, Star-Light Plus, 2.1 Megapixel (1920x1080 @ 30fps), 1/2.8" CMOS Sensor, 4mm
$543.75$638.00
In stock (1 units)
Digital Watchdog

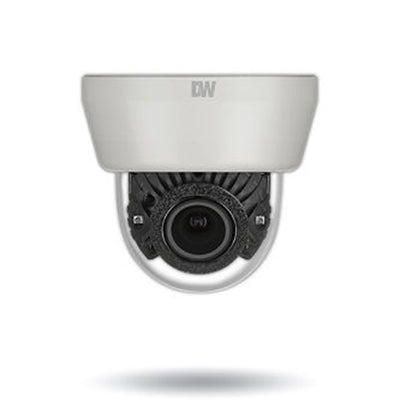

Digital Watchdog DWC-D4283WTIR Star-Light AHD Series, Snapit Indoor Dome, 2.1MP CMOS Sensor, P-Iris, 1920x1080 resolution, AHD,CVI,TVI,960H
