Description

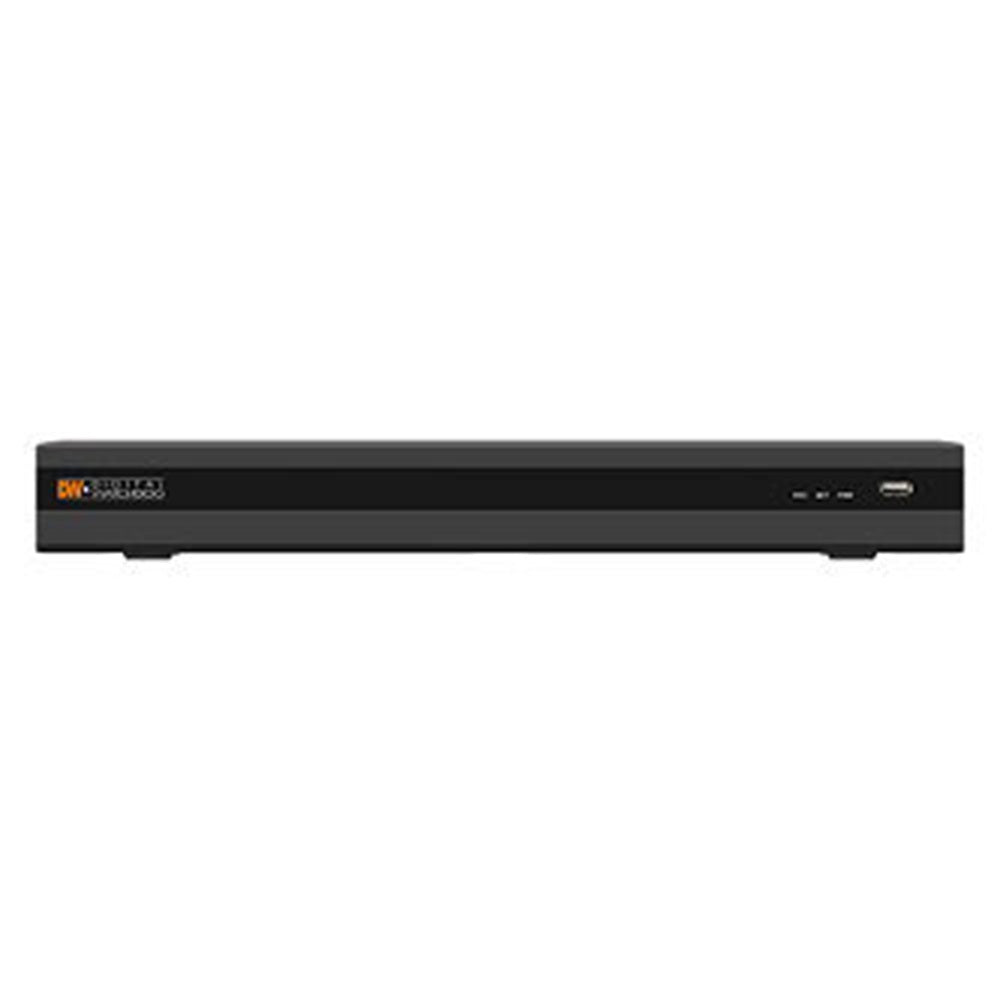

VMAX A1 G4 Universal HD over Coax DVR records HD-Analog, HD-TVI and standard coax up to 4K resolution, 8ch, 6TB, 240fps real-time 30fps recording, Up to 4K recording resolution at 56fps (7fps per channel), 8 audio inputs, 1 audio output, 8 sensor input
| Manufacturer | Digital Watchdog |
|---|---|
| Part Number | DW-VA1G486T |
| Product Type | Video Surveillance Station |
| Maximum Video Resolution | 3840 x 2160 |
| Number of Channels | 8 |
| Connectivity Technology | Wired |
| TAA Compliant | Yes |
| Dimensions | 1.77" x 14.96" x 10.58", 12.4" x 9.52" x 1.77" |
| Height | 1.8" |
| Width | 15.0" |
| Depth | 10.6" |
| Limited Warranty | 5-Year |
| Maximum Supported Storage Capacity | 6TB |
| Hard Drive Capacity | 6TB |
| Audio Encoding | ADPCM |
| Recording Modes | Pre / Post Alarm |
| Certifications | CE, FCC, NDAA, TAA |
| Certifications & Standards | CE, FCC, KC, NDAA, TAA |
| Operating Humidity | 0-80% RH |
| Operating Temperature (T-T) | 41-104°F |
| Product Line | VMAX A1 G4 |
| Number of Audio Line In | 8 |
| Number of Audio Line Out | 1 |
| Number of Ethernet Ports | 1 |
| Number of USB Ports | 1 |
| Output Ports | CVBS, VGA |
| Serial Port | Yes |
| Operating System Compatibility | Linux |
| Package Contents | Mouse |
| Ethernet | Yes |
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
| Remote Management | Yes |
| Maximum Power Consumption | 48W |
| Model Number Replaces | DW-VA1P86T |
| Number of Hard Drives Supported | 2 |
| Maximum Frame Rate | 240fps |
| Protocols | IPv4 |
| Video Formats | H.264 / AVC, MJPEG |
| Category | Physical Security > Video Surveillance > Video Recorders & Servers |
| Shipping Weight | 7.25 lb |
| Country of Origin | US |
