Description

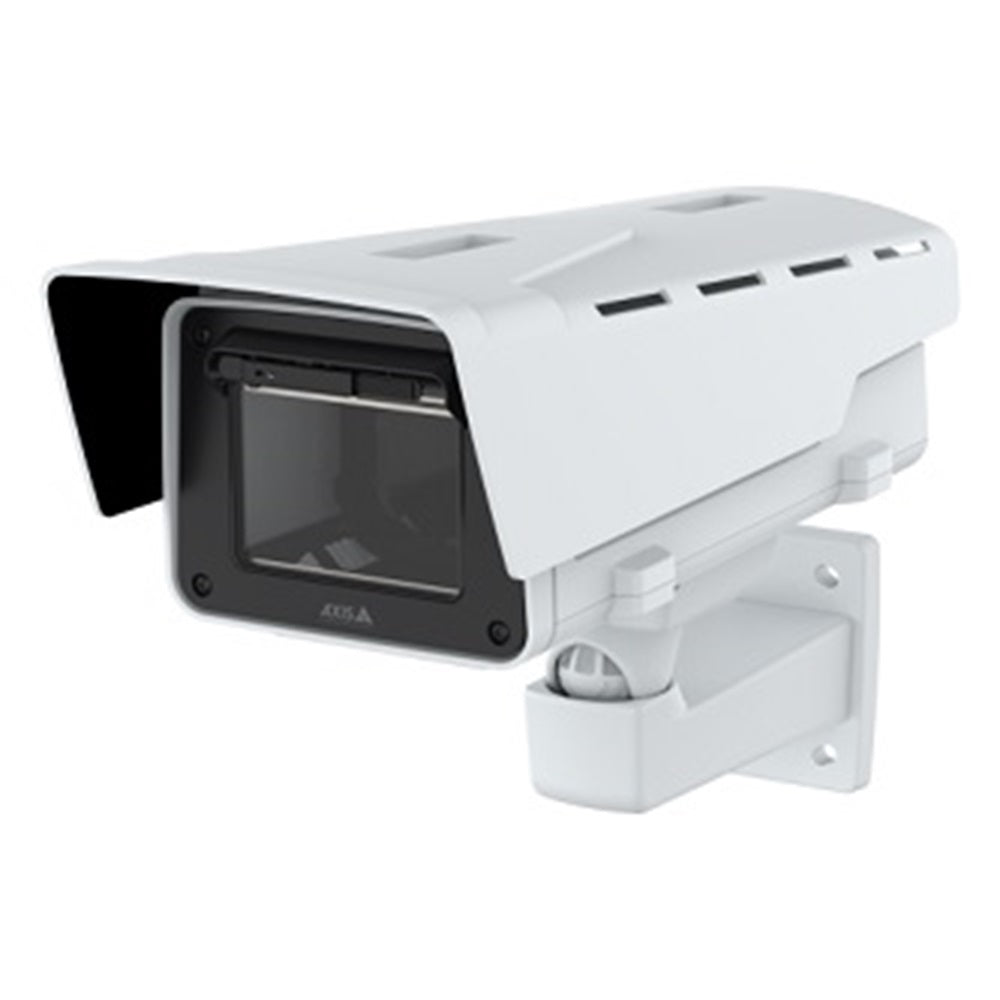

Robust outdoor housing with built-in wiper, for use with AXIS Q17 Series block cameras and AXIS P13 Series box cameras and other selected box cameras. Carbon nanotube window heater, Built-in camera heater and fan, withstands hurricane-force of more than 60m/s (134 mph). IP66, IP67, NEMA 4X and IK10-rated, including IK10-rated glass for high-impact resistance. Open casing intrusion detection. Support for optional IR illuminator kits and corridor format. Powered by IEEE 802.3af Type2 Class 4 (PoE+) or 10-28 V DC power with redundancy. RJ45 connection or optional IDC punch connector. Arctic Temperature Control for start-up and operating in -40 C to +60 C (-40 F to 140 F). Includes removable sunshield, wall bracket and cable glands. Midspan or power supply not included.
| Manufacturer | Axis Communications |
|---|---|
| Part Number | 03047-001 |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP66, IP67 |
| Impact Protection Rating | IK10 |
| PoE | Yes |
| Power over Ethernet (PoE) | Yes |
| Operating Temperature (T-T) | -40-60°C |
| Product Line | TQ |
| Product Series | TQ18 |
| Maximum Power Consumption | 25W |
| Model Number Replaces | 02322-001, 5507-681 |
| Category | Physical Security > Accessories > Mounting Accessories |
| Shipping Weight | 11.24 lb |
| Country of Origin | MY |
