Description

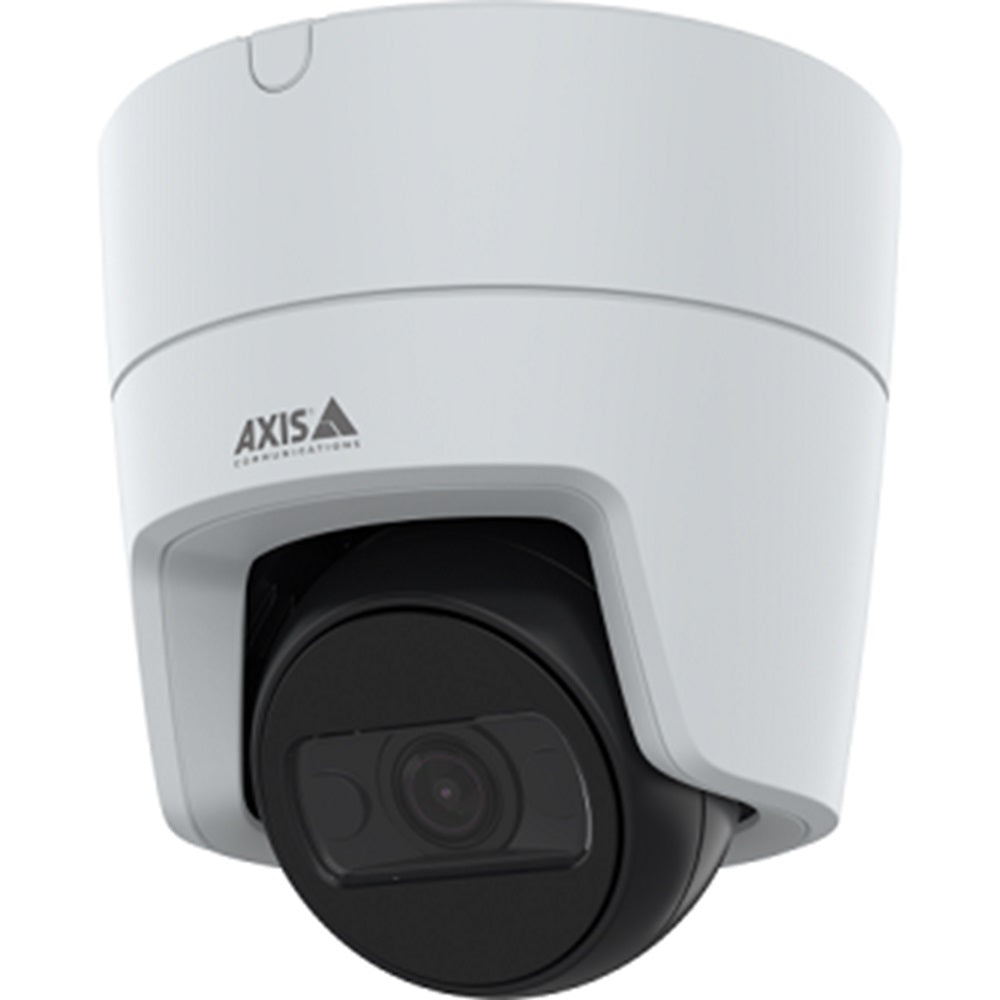

AXIS M3128-LVE is a compact, turret style outdoor-ready dome camera. IP66 and IK08 impact-resistant design with built-in IR illumination. Fixed lens, 110 horizontal field of view. Multiple, individually configurable H.264, H.265 and Motion JPEG streams; 8MP at up to 15 fps with WDR. Zipstream for reduced bandwidth and storage. Includes a Deep Learning Processing Unit (DPLU) for advanced AI-based analytics. Axis Object Analytics, video motion detection and active tampering alarm. Audio and I/O with compatible Axis portcast accessories. MicroSD memory card slot for local video storage. AXIS Edge Vault with FIPS 140-3 level 3 for increased cyber security. White color.
| Manufacturer | Axis Communications |
|---|---|
| Part Number | 02920-001 |
| Product Type | Fixed dome cameras |
| Form Factor | Dome |
| Effective Camera Resolution | 8MP |
| Maximum Video Resolution | 3840 x 2160 |
| Lens Type | Fixed |
| Focal Length | 2.9mm |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP66 |
| Impact Protection Rating | IK08 |
| PoE | Yes |
| TAA Compliant | Yes |
| Color | White |
| Weight | 0.90lb |
| Limited Warranty | 5-Year |
| Maximum Focal Length | 2.9mm |
| Power over Ethernet (PoE) | Yes |
| Wide Dynamic Range | Yes |
| Lens Mount Type | M12 |
| Image Sensor Type | CMOS |
| Certifications | EN 55024, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES(A)/NMB(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Certifications & Standards | ONVIF G, ONVIF M, ONVIF S, ONVIF T |
| Image Sensor Size | 1/2.8" |
| Maximum Operating Temperature | 122°F |
| Minimum Operating Temperature | -22°F |
| Operating Humidity | 100% |
| Operating Temperature (T-T) | -30-50°C |
| Longest Shutter Speed | 2 s |
| Minimum Illumination | 0.05lux |
| Shortest Shutter Speed | 1/71500 Second |
| Product Line | M |
| Product Series | M31 |
| Supported Network Protocols | IPv6 |
| Lens Included | Yes |
| Memory Card Supported | Yes |
| SD Card Slot | Yes |
| Environmental Certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK08, NEMA 250 Type 4X |
| Environmentally Friendly | Yes |
| Durability | Vandal Resistant |
| Maximum Power Consumption | 10W |
| Diameter | 4.0" |
| Storage Type | SD Card |
| Aperture | f/2.0 |
| Field of View | Horizontal, Vertical |
| Maximum Aperture | f/2 |
| Maximum Frame Rate | 15fps |
| Night Vision | Yes |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual |
| Category | Physical Security > Video Surveillance > Surveillance Cameras |
| Shipping Weight | 1.21 lb |
| Country of Origin | IT |
