Description

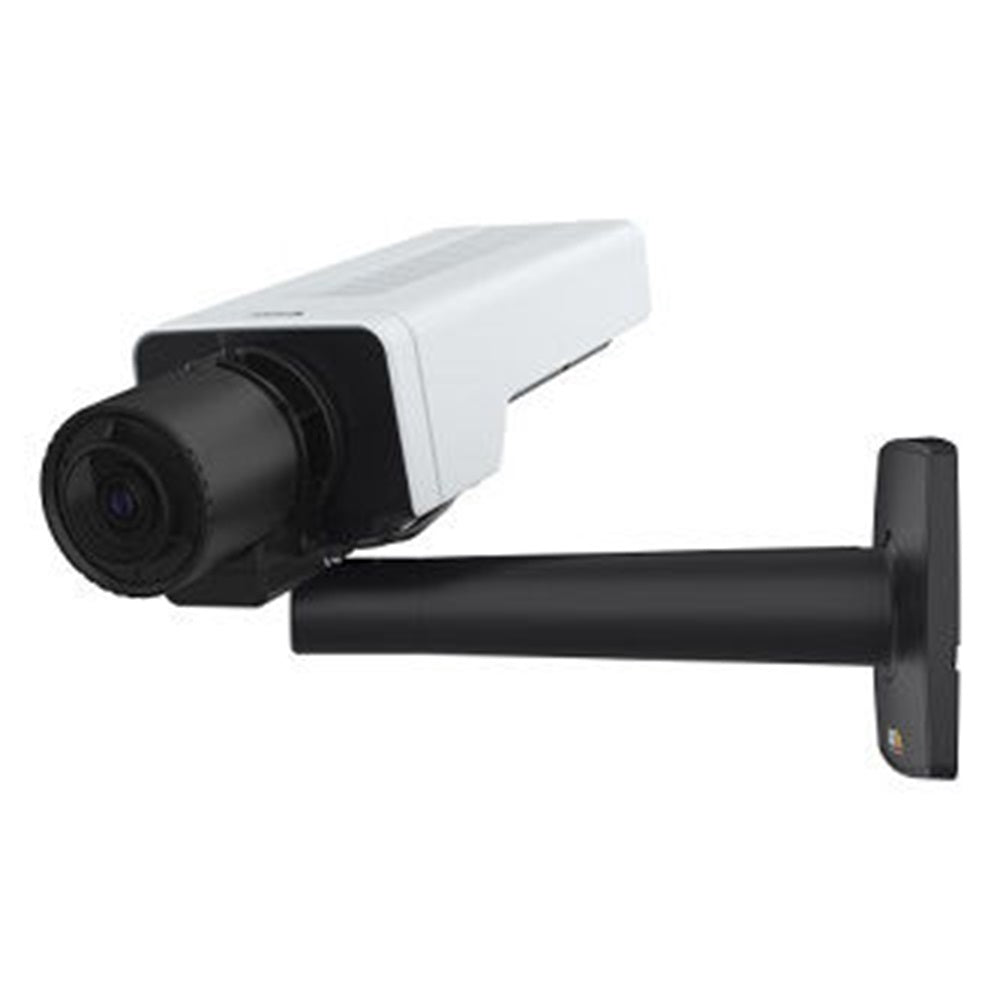

AXIS P1385 - 1/2.8 image sensor, 2 MP/1080p resolution, day/night, fixed box camera with Deep Learning Processing Unit (DLPU). Support for Forensic WDR and Lightfinder 2.0. Varifocal CS-mount 2.8-13 mm P-iris lens with remote focus. Camera supports CS-mount DC-iris lenses and i-CS lenses for remote installation zoom and focus. Multiple, individually configurable H.264/H.265 with Zipstream and Motion JPEG. 2MP at 50/60 fps. AXIS Object Analytics, Video motion detection, shock detection and active tampering alarm. AXIS Edge Vault for added cyber security. Barrel distortion correction, defogging, electronic image stabilization and scene profiles. Audio in and supervised I/O port, microSD memory card slot for local storage. MQTT Support. Two-way audio with speaker pairing, audio detection with either built-in microphone or optional analog or digital microphone. Supervised I/O for alarm/event handling, MicroSD/MicroSDHC memory card slot for optional local video storage. Serial port for RS422/485 communication. Powered by IEEE 802.3af Type1 Class 3 (PoE) or 10-28 V DC power with redundancy. Includes black stand for wall and ceiling. Midspan or power supply not included.
| Manufacturer | Axis Communications |
|---|---|
| Part Number | 02733-001 |
| Product Type | Fixed cameras |
| Effective Camera Resolution | 2MP |
| Maximum Video Resolution | 1920 x 1080 |
| Lens Type | Varifocal |
| Focal Length | 2.8-13mm |
| Indoor/Outdoor | Indoor |
| PoE | Yes |
| Mount Type | Box Mount |
| Color | White |
| Maximum Resolution | 1280 x 720 |
| Maximum Focal Length | 13.00mm |
| Minimum Focal Length | 2.80mm |
| Power over Ethernet (PoE) | Yes |
| Wide Dynamic Range | Yes |
| Lens Mount Type | i-CS |
| Image Sensor Type | CMOS |
| Certifications | CISPR 32 Class A, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, KS C 9832 Class A, KS C 9835, VCCI Class A |
| Certifications & Standards | ONVIF G, ONVIF M, ONVIF S, ONVIF T |
| Image Sensor Size | 1/2.8" |
| Operating Temperature (T-T) | -10-55°C |
| Minimum Illumination | 0.0100lux |
| Product Line | P |
| Product Series | P13 |
| Supported Network Protocols | IPv6 |
| Lens Included | Yes |
| Memory Card Supported | Yes |
| SD Card Slot | Yes |
| Environmental Certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78 |
| Features | Day/Night |
| Remote Management | Yes |
| Maximum Power Consumption | 9.31W |
| Model Number Replaces | 01532-031, P1375 |
| Aperture | f/1.4 |
| Aspect Ratio | 16:9 |
| Built-in Microphone | Yes |
| Field of View | Horizontal, Vertical |
| Maximum Frame Rate | 60fps |
| Night Vision | Yes |
| Video Formats | H.264 / AVC, H.265 / HEVC |
| Graphics Mode | Full HD |
| Category | Physical Security > Video Surveillance > Surveillance Cameras |
| Shipping Weight | 2.73 lb |
| Country of Origin | TH |
