Description

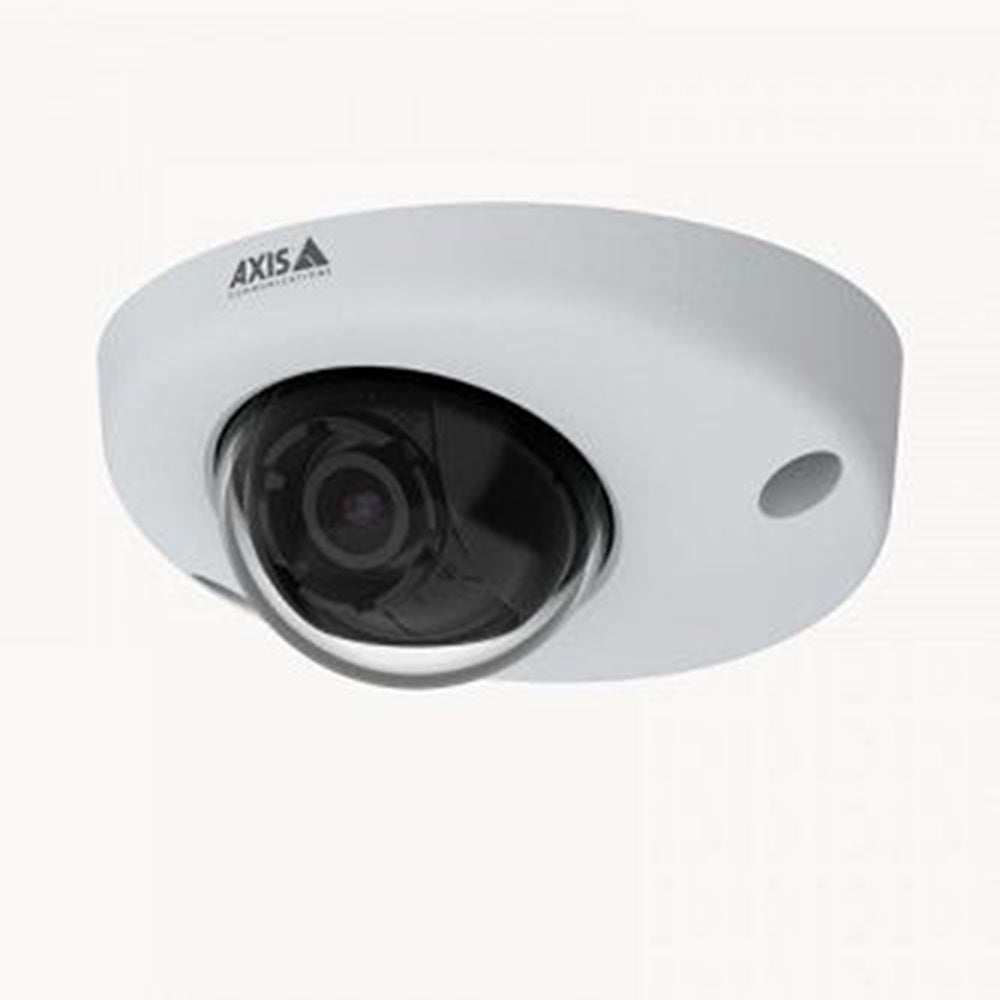

AXIS P3925-R RJ45 2.8mm is a Full HDTV 1080p fixed dome onboard camera with male RJ45 network connector for rolling stock and vehicles. Equipped with 2.8mm, F1.6 lens in ruggedized IP66/IP67 and IK10 rated metal casing. Multiple, individually configurable H.264, H.265 and Motion JPEG streams. Forensic WDR, Lightfinder technology and removable IR-cut filter for day/night functionality. Axis Zipstream technology for reduced bandwidth and storage needs, microSD/microSDHC/microSDXC memory card slot for optional local video storage. Includes lens tool, L-key, and drill template.
| Manufacturer | Axis Communications |
|---|---|
| Part Number | 01920-001 |
| Product Type | Fixed dome cameras |
| Form Factor | Dome |
| Effective Camera Resolution | 2MP |
| Focal Length | 2.8mm |
| Indoor/Outdoor | Indoor, Outdoor |
| Ingress Protection Rating | IP66, IP67 |
| Impact Protection Rating | IK10 |
| PoE | Yes |
| Connectivity Technology | Wired |
| Mount Type | Pendant Mount, Wall Mount |
| NDAA Compliant | Yes |
| TAA Compliant | Yes |
| Color | White |
| Height | 1.9" |
| Limited Warranty | 5-Year |
| Maximum Resolution | 1280 x 720 |
| Maximum Focal Length | 2.8mm |
| Minimum Focal Length | 2.8mm |
| Power over Ethernet (PoE) | Yes |
| Wide Dynamic Range | Yes |
| Lens Mount Type | M12 |
| Image Sensor Type | CMOS |
| Certifications | ECE R10 rev.05 (?E-ma?rk) |
| Certifications & Standards | ONVIF G, ONVIF M, ONVIF S, ONVIF T |
| Image Sensor Size | 1/2.9" |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -40°F |
| Operating Humidity | 95% |
| Operating Temperature (T-T) | -40-55°C |
| Longest Shutter Speed | 2 s |
| Minimum Illumination | 0.01lux |
| Shortest Shutter Speed | 1/33500 Second |
| Product Line | P |
| Product Series | P39 |
| Supported Network Protocols | IPv6 |
| Network (RJ-45) | Yes |
| Lens Included | Yes |
| Memory Card Supported | Yes |
| SD Card Slot | Yes |
| Environmental Certification | EN 50155 Class OT2/ST2 (2021), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC 60721-3-5 Class 5M3 (Vibration, Shock), IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 61373 Category 1 Class B, IEC/EN 62262 IK10 |
| Features | Day/Night, Defog, Electronic Image Stabilization, HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, PTZ, SD Card Local Storage, Shock Detection, Tampering Alarm |
| Package Contents | P3925-R Network Camera Installation Guide Windows Decoder 1-User License, Drill Hole Template Lens Tool Resistorx L-Key |
| Remote Management | Yes |
| Durability | Dustproof, Impact Resistant, Vandal Resistant, Waterproof |
| Maximum Power Consumption | 6W |
| Diameter | 4.3" |
| Recording Formats | H.264, H.265 / HEVC |
| Aperture | f/1.6 |
| Aspect Ratio | 16:9 |
| Field of View | Horizontal, Vertical |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Night Vision | Yes |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual |
| Graphics Mode | Full HD |
| Category | Physical Security > Video Surveillance > Surveillance Cameras |
| Shipping Weight | 0.88 lb |
| Country of Origin | JP |
