Description

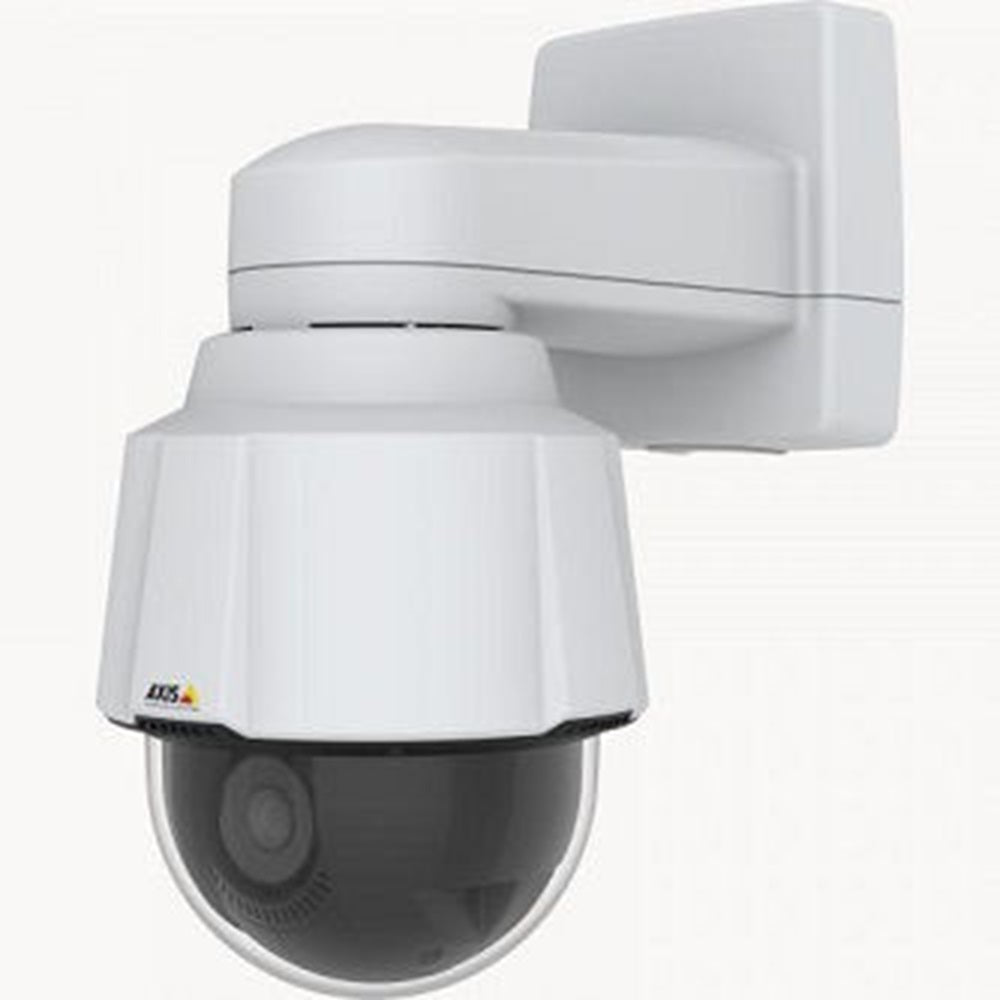

AXIS P5655-E 60HZ - PTZ camera with continuous 360 degree pan for both indoor and outdoor with 32x optical zoom, Lightfinder 2, Autofocus and Focus Recall. HDTV 1080p @ 30/60fps (1920x1080) in Motion JPEG, H.264, H.265, and Axis Zipstream. Two-way audio, 4xI/O, 24V and PoE, Day & Night, IP66, IK10 and NEMA 4X classification. Advanced Gatekeeper, full-size SD-card slot. Mounting brackets, Midspan/Power supply and connector or cable for audio, I/O and 24V are not included.
| Manufacturer | Axis Communications |
|---|---|
| Part Number | 01682-004 |
| Product Type | PTZ cameras |
| Form Factor | Dome |
| Effective Camera Resolution | 2MP |
| Maximum Video Resolution | 1920 x 1080 |
| Lens Type | Varifocal |
| Focal Length | 4.3-137.6mm |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP66 |
| Impact Protection Rating | IK10 |
| PoE | Yes |
| Input Voltage | 100V AC, 240V AC |
| Connectivity Technology | Wired |
| Mount Type | Bracket Mount |
| NDAA Compliant | Yes |
| Color | White |
| Height | 8.5" |
| Limited Warranty | 5-Year |
| Maximum Resolution | 1280 x 720 |
| Maximum Focal Length | 137.6mm |
| Minimum Focal Length | 4.3mm |
| Power over Ethernet (PoE) | Yes |
| Wide Dynamic Range | Yes |
| Image Sensor Type | CMOS |
| Certifications | EAC, EN 50121-4, EN 55024, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Certifications & Standards | ONVIF G, ONVIF M, ONVIF S, ONVIF T |
| Image Sensor Size | 1/2.8" |
| Maximum Operating Temperature | 122°F |
| Minimum Operating Temperature | -22°F |
| Operating Humidity | 100% |
| Operating Temperature (T-T) | -30-50°C |
| Longest Shutter Speed | 2 s |
| Minimum Illumination | 0.01lux |
| Shortest Shutter Speed | 1/66500 Second |
| Product Line | P |
| Product Series | P56 |
| Supported Network Protocols | IPv6 |
| Network (RJ-45) | Yes |
| Lens Included | Yes |
| Minimum Aperture | f/4 |
| Memory Card Supported | Yes |
| SD Card Slot | Yes |
| Environmental Certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X |
| Features | Auto Gain Control, Automatic Defog, Cross Line Detection, Electronic Image Stabilization, HTTPS Encryption, Human Detection, Password Protection, Privacy Masking |
| Package Contents | P5655-E PTZ Network Camera RJ45 Push-pull Connector (IP66) Hard ceiling mount Spring pipe adaptor U-profile pipe adaptor Installation Guide and more below , AVHS Authentication key, Windows decoder 1-user license |
| Remote Management | Yes |
| Durability | Dustproof, Impact Resistant, Waterproof, Weather Resistant |
| Maximum Power Consumption | 26W |
| Diameter | 7.4" |
| Model Number Replaces | 0929-001, 0930-001, P5655-E |
| Recording Formats | H.264, H.265 / HEVC |
| Storage Type | SD Card |
| Aperture | f/1.4-4.0 |
| Aspect Ratio | 16:9 |
| Field of View | Horizontal, Vertical |
| Maximum Aperture | f/1.4 |
| Maximum Frame Rate | 60fps |
| Night Vision | Yes |
| Optical Zoom | 32x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual |
| Graphics Mode | Full HD |
| Category | Physical Security > Video Surveillance > Surveillance Cameras |
| Shipping Weight | 7.2 lb |
| Country of Origin | KH |
Related Products
Axis Communications

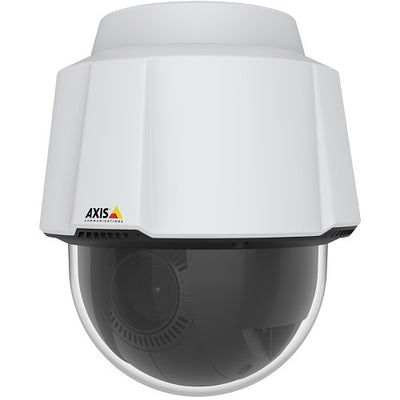

Axis Communications 02914-001 P5654-E Mk II PTZ Camera 50HZ. Wide angle PTZ with HDTV 1080p and 21x zoom.
$1,699.00
In stock (6 units)
Axis Communications
Axis Communications 02785-004 W102 Body Worn Camera Black
$869.00
In stock (66 units)
Axis Communications
Axis Communications 02957-001 Q6020-E 60 Hz PTZ Camera
$2,429.00
In stock (25 units)
Axis Communications
Axis Communications 02347-004 M5075-G - Ceiling-mount mini PTZ dome camera with 5x Optical zoom and autofocusing, HDTV 1080p (1920x1080)
$709.00
In stock (7 units)
Axis Communications

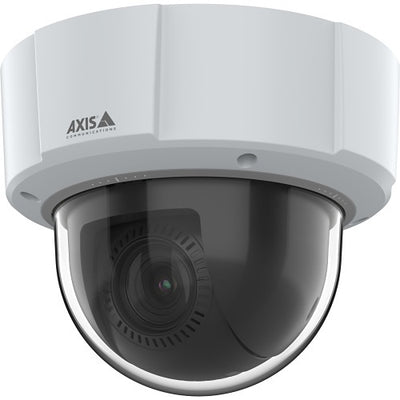

Axis Communications 02769-021 Industrial four pack of AXIS M5526-E 60Hz PTZ Camera. Indoor and outdoor 4 MP with 10x zoom and focus recall.
