Description

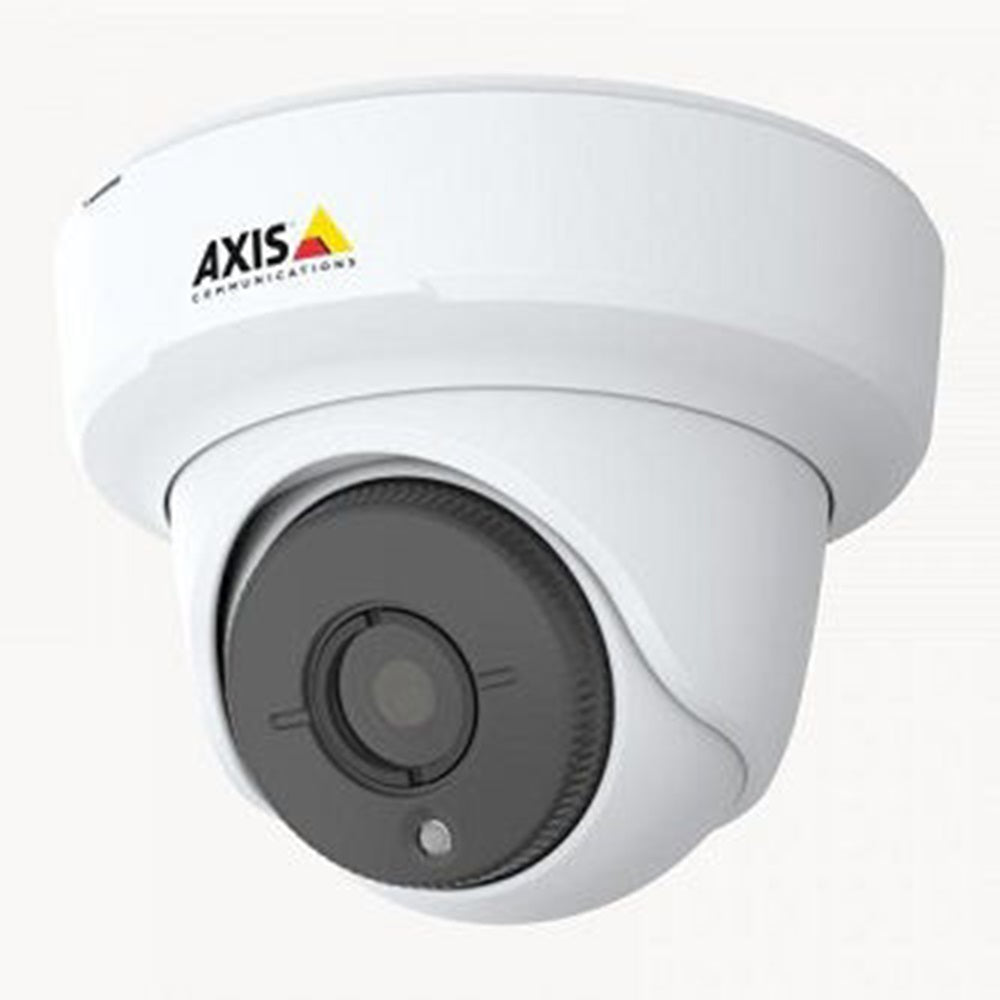

AXIS FA3105-L EYEBALL SENSOR UNIT - AXIS FA3105-L is a compact eyeball sensor unit with built in IR illumination (15 m / 49 ft range of reach) for use with AXIS FA Main Unit. It has 103 degree horizontal field of view and 1080p HDTV resolution with Forensic WDR (wide dynamic range) that is optimized for low light and motion. The unit comes with a mounting bracket and an 8 m (26 ft.) cable for connection to the main unit.
| Manufacturer | Axis Communications |
|---|---|
| Part Number | 01026-001 |
| Product Type | Sensor units |
| Form Factor | Eyeball |
| Effective Camera Resolution | 2MP |
| Maximum Video Resolution | 1920 x 1080 |
| Lens Type | Fixed |
| Focal Length | 3.13mm |
| Night Vision Distance | 49.21' |
| Indoor/Outdoor | Indoor |
| Connectivity Technology | Wired |
| Mount Type | Surface Mount |
| NDAA Compliant | Yes |
| Color | White |
| Weight | 3.10oz |
| Maximum Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
| Image Sensor Type | CMOS |
| Certifications | EN 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Image Sensor Size | 1/3" |
| Maximum Operating Temperature | 122°F |
| Minimum Operating Temperature | -4°F |
| Operating Humidity | 85% |
| Operating Temperature (T-T) | -20-50°C |
| Longest Shutter Speed | 1/30 s |
| Minimum Illumination | 0.00lux |
| Shortest Shutter Speed | 1/32500 Second |
| Product Line | FA |
| Product Series | FA31 |
| Lens Included | Yes |
| Environmental Certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP3X |
| Features | Built-in IR LED, Day/Night |
| Remote Management | Yes |
| Maximum Power Consumption | 1W |
| Diameter | 2.9" |
| Aperture | f/2.0 |
| Aspect Ratio | 16:9 |
| Field of View | Horizontal, Vertical |
| Maximum Aperture | f/2 |
| Maximum Frame Rate | 30fps |
| Night Vision | Yes |
| Graphics Mode | Full HD |
| Category | Physical Security > Video Surveillance > Surveillance Cameras |
| Shipping Weight | 1 lb |
| Country of Origin | TH |
